DC24V Lorry Hydraulic Tailgate Truck Tailgate Lifter 1520mm

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap DC24V Lorry Hydraulic Tailgate Truck Tailgate Lifter 1520mm from wholesalers

    Buy cheap DC24V Lorry Hydraulic Tailgate Truck Tailgate Lifter 1520mm from wholesalers
    • Buy cheap DC24V Lorry Hydraulic Tailgate Truck Tailgate Lifter 1520mm from wholesalers
    • Buy cheap DC24V Lorry Hydraulic Tailgate Truck Tailgate Lifter 1520mm from wholesalers

    DC24V Lorry Hydraulic Tailgate Truck Tailgate Lifter 1520mm

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-15-152
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    MOQ : 5 Pcs
    • Product Details
    • Company Profile

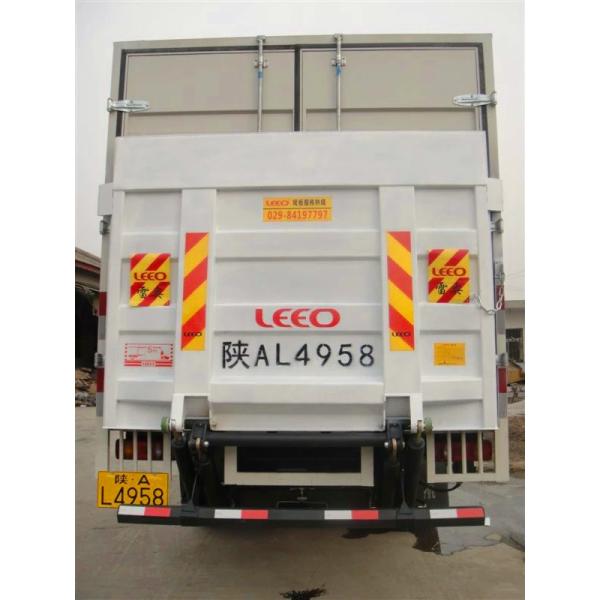

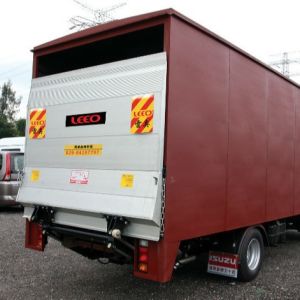

    DC24V Lorry Hydraulic Tailgate Truck Tailgate Lifter 1520mm

    Lorry Hydraulic Equipment Cantilever Tail Lift Gate For Sales

    Product Description

    Platfrom Material: Steel or Aluminum

    Max lift height: 1520 MM

    Platform Dimension(W*H) 2300*1800 MM

    Weight: 420--535 Kg

    Lift speed: 60--90 mm/s

    System Pressure: 18Mpa

    Load Capacity: 1500 Kg

    Power: 2KW

    Voltage: DC24V


    What does a tail lift do?

    A tail lift (term used in the UK, also called a "liftgate" in North America) is a mechanical device permanently installed on the rear of a work truck, van, or lorry, and is designed to facilitate the materials handling of goods from ground level or a loading dock to the level of the vehicle bed, or vice versa.


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


    Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere


    Why Choose US


    A>Our products technical its the highest level in China, and a large number of products are exported to Hong Kong.


    B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI


    C> Our Philosophy is: Active service, Pursuit of perfection


    D> We are proficient in products, understand customers, put people first, and pursue excellence.


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    DC24V Lorry Hydraulic Tailgate Truck Tailgate Lifter 1520mm


    FAQ


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
